Best Wavelength for Red Light Therapy: A Goal-by-Goal Guide
TL;DR
-There is no single best wavelength for red light therapy. The right wavelength depends entirely on what you are treating, because different wavelengths penetrate tissue to different depths and are absorbed by different biological targets.
-Red wavelengths at 630 to 660nm are most effective for surface tissue: skin health, collagen, acne, wound healing, and hair follicles. Near-infrared at 810 to 850nm penetrates deeper and is most effective for muscle, joint, and neurological applications.
-The 700 to 800nm range has limited biochemical activity and is not typically used in therapeutic protocols despite sitting between the two main therapeutic windows. A device with LEDs in this range is not necessarily adding value.
-1064nm VCSEL laser penetrates significantly deeper than any LED wavelength and is the most relevant technology for deep tissue, bone density, and systemic applications.
-Combining multiple wavelengths simultaneously produces superior results to any single wavelength, because the longer wavelengths amplify the effects of shorter wavelengths as they travel through tissue together.
If you have looked at more than a handful of red light therapy devices, you have noticed that manufacturers list wavelengths prominently: 630nm, 660nm, 810nm, 850nm, 940nm, 1064nm. Some devices offer two wavelengths. Others claim nine. The question most buyers cannot answer is: which of these actually matters for what I want to achieve?
This guide works through the evidence for each wavelength, explains the biological reasons why depth of penetration determines which wavelength is right for which goal, and provides a practical goal-by-goal breakdown.

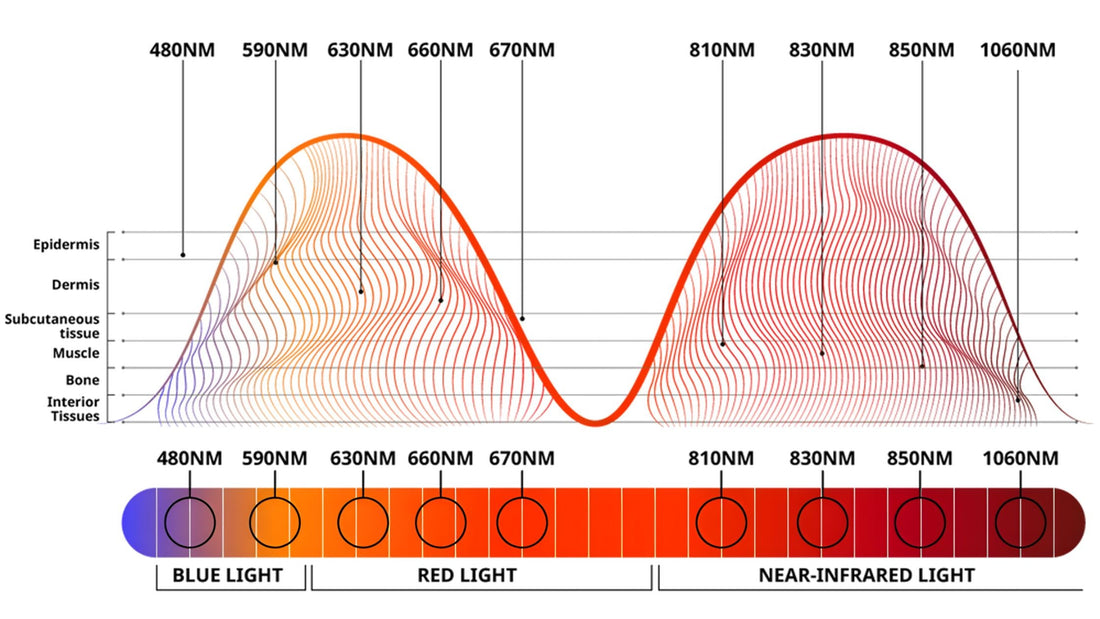

Why Wavelength Determines Depth
Before getting into individual wavelengths, it is worth understanding why wavelength and penetration depth are linked. Light photons with longer wavelengths carry less energy per photon but scatter differently in biological tissue, allowing them to travel further before being absorbed. Shorter wavelengths are absorbed more readily in the upper skin layers, making them more effective at surface-level targets and less effective at deeper ones.
The skin itself has multiple layers: the epidermis (0.05 to 1.5mm), the dermis (1 to 4mm), and the hypodermis (1mm to 3cm depending on location). Below the skin lie muscle, bone, organs, and joints. The target tissue for your application determines which wavelength range needs to reach it.
A 2017 review published in Lasers in Medical Science confirmed that visible red wavelengths at 610 to 670nm can absorb to a maximum depth of 4 to 5mm in skin, sufficient for dermal and surface muscle targets. Near-infrared wavelengths penetrate significantly deeper, reaching muscle, joint, and even neural tissue that red light cannot adequately access.
The Therapeutic Window: Where the Evidence Is Concentrated
Researchers have identified what they call a therapeutic window of wavelengths where photobiomodulation produces documented biological benefits: broadly 630 to 660nm in the red range and 810 to 850nm in the near-infrared range.
A 2017 review by Yadav and Gupta published in Photodermatology, Photoimmunology and Photomedicine confirmed that near-infrared at 800 to 830nm was the most effective and widely studied wavelength range for wound healing, followed by red at 630 to 680nm, with 904nm superpulsed laser also showing benefit.
Critically, the 700 to 800nm range shows limited biochemical activity and is not commonly used in therapeutic protocols. This is because wavelengths in this range are neither absorbed efficiently enough by chromophores in the skin to produce surface effects nor long enough to penetrate to deeper tissue targets. A device that includes LEDs in the 700 to 780nm range is not necessarily adding therapeutic value. When comparing devices, focus on whether the wavelengths sit within or close to the documented therapeutic windows.
Wavelength-by-Wavelength Breakdown
630nm: Surface Skin and Hair
630nm sits at the lower end of the red therapeutic range. It is primarily absorbed within the epidermis and upper dermis and is most relevant for surface skin conditions including acne management, fine line reduction, hair follicle stimulation, and wound healing at the skin surface.
A review cited in Dermatology Times noted that 630nm combined with blue light could be a viable acne treatment. Multiple studies have documented hair regrowth stimulation at 630nm, and research has shown that the 630nm wavelength combined with microneedling produced significant improvements in photodamage and fine lines.
At only 4mm maximum penetration, 630nm is the most superficial of the therapeutic wavelengths and is not appropriate as the sole wavelength for anyone treating deeper targets.
660nm: Skin, Collagen, and Nerve Repair
660nm is the most studied wavelength in the red spectrum and the one most commonly referred to when people say red light therapy. Its slightly longer wavelength compared to 630nm means deeper penetration within the skin, while still being primarily a surface tissue wavelength.
Key documented effects of 660nm include collagen synthesis stimulation, reduction of fine lines and wrinkles, wound healing acceleration, anti-inflammatory effects, and nerve repair support. A 2015 study found 660nm was more effective than 830nm for increasing ATP production in vitro and accelerating callus formation in bone fracture healing, demonstrating that longer is not always better for all applications.
For rosacea, the research by Lee et al. specifically used 630nm and 940nm to achieve cathelicidin and TLR2 downregulation, and the Sorbellini case report used 650nm for the red component. For skin applications generally, 660nm is the anchor wavelength.
810nm: Neural, Brain, and Muscle
810nm occupies a unique position at the lower end of the near-infrared therapeutic range. Its deeper penetration compared to visible red makes it effective for muscle and joint applications, but what makes 810nm particularly interesting is its neurological research base.
Multiple studies have documented that 810nm applied transcranially can reach neural tissue, improve recovery from traumatic brain injury, and support neurological function. A 2009 pilot study on 810nm NIR applied to the forehead documented improvements in major depression and anxiety. A study of stroke patients showed 810nm provided neuroprotective benefits with significant recovery improvements.
810nm also has a strong muscle performance evidence base, with a 2017 study of soccer players showing enhanced performance and post-exercise recovery with 810nm pre-activity sessions.
830nm: Wound Healing, Bone, and Recovery
830nm is the most studied near-infrared wavelength for wound healing, confirmed as the primary NIR wavelength in the Yadav and Gupta 2017 review. Multiple studies have documented accelerated wound healing, bone repair stimulation, and injury recovery at 830nm.
A 2013 study found 830nm accelerated wound healing and helped ward off infection across five patients with varying wound types. A 2015 study found 830nm exposure after aesthetic surgery reduced swelling, infection, bruising, and pain. A 2016 study tracking 395 injuries over 15 months found 830nm significantly reduced return-to-play time across a wide range of musculoskeletal injuries.
850nm: Muscle Mass, Inflammation, and Deep Tissue
850nm is the most commonly included NIR wavelength in consumer red light therapy devices and has a broad evidence base across muscle, inflammation, and deep tissue applications. A 2016 meta-analysis by Hamblin found that 850nm on athletes increased muscle mass after training and decreased inflammation and oxidative stress in muscle biopsies.
For most muscle recovery, joint pain, and deep tissue applications, 850nm is the practical workhorse wavelength. The combination of 660nm and 850nm is the most common two-wavelength configuration in consumer devices and covers the primary therapeutic needs of most users.
940nm: Mitochondrial Support and Vascular Effects
940nm sits beyond the primary NIR therapeutic window at 810 to 850nm but has documented effects through a different photoacceptor pathway. Where 660nm and 850nm primarily act on cytochrome c oxidase in the mitochondrial respiratory chain, 940nm has additional activity on water and haemoglobin absorption bands, potentially contributing to vascular and circulatory effects.
940nm appears in multi-wavelength clinical protocols including the Phypers et al. 2024 fertility study which used 660nm, 810nm, 850nm, 880nm, and 940nm. Its inclusion in premium multi-wavelength devices adds complementary vascular and mitochondrial pathways not fully covered by the primary therapeutic window wavelengths.
1064nm VCSEL Laser: Deepest Penetration Available
1064nm represents a significant step beyond standard NIR LED wavelengths, and the technology matters as much as the wavelength. StreamShop's laser bed and laser mat use VCSEL (vertical-cavity surface-emitting laser) technology at 1064nm rather than standard LEDs.
The combination of the longer wavelength and the coherent, collimated light output of laser technology means 1064nm VCSEL achieves significantly deeper tissue penetration than any LED wavelength. This is most relevant for deep tissue targets including bone density support, systemic inflammatory conditions, deep muscle bellies, and neurological applications where transcranial penetration to brain structures is the goal.
The Phypers et al. fertility study used laser devices at 660nm, 800nm, 905nm, and 970nm specifically for their deeper penetration compared to LED protocols. The principle translates directly to 1064nm VCSEL for applications requiring the deepest tissue access.
The Multiwavelength Advantage
One of the most well-supported findings in photobiomodulation research is that combining multiple wavelengths simultaneously produces superior results to any single wavelength used alone. The mechanism is photon interaction within tissue: as multiple wavelengths travel through tissue together, they scatter in overlapping patterns, creating a denser net of photon coverage across multiple tissue depths simultaneously.
A 2012 paper documented that patients treated with combinations of either 630nm/850nm LED or 660nm/830nm LED showed superior collagen production results compared to single-wavelength treatments. A 2011 study found that combining 660nm with 830nm delayed muscle fatigue and enhanced skeletal muscle performance more effectively than either wavelength alone.
The practical implication is that a device offering well-chosen multiple wavelengths within the therapeutic window will outperform a single-wavelength device at equivalent irradiance, and that the wavelength combination matters more than simply having more wavelengths.
Wavelength by Goal: Practical Guide
Skin health, collagen, and anti-ageing: 630nm and 660nm are the primary wavelengths. Adding 830nm or 850nm deepens the anti-inflammatory effect and supports the dermal layer.
Acne and rosacea: 630nm and 660nm red plus 415 to 480nm blue for antimicrobial effects. For rosacea specifically, red-only mode without NIR reduces thermal risk for heat-sensitive skin.
Hair regrowth: 630nm and 660nm. Hair follicles are superficial targets and red wavelengths are most appropriate.
Muscle recovery and athletic performance: 810nm, 830nm, and 850nm. These wavelengths reach muscle tissue at depth and have the strongest evidence base for recovery applications.
Joint pain and inflammation: 810nm to 850nm for most joints. Larger joints including knees and hips benefit from higher irradiance to compensate for depth. Adding 1064nm VCSEL provides the deepest available penetration for the most challenging joint targets.
Nerve pain and neuropathy: 660nm for superficial nerve applications, 830nm to 850nm for deeper peripheral nerve targets, 1064nm VCSEL for the deepest peripheral nerve tissue in the lower limbs.
Depression, mood, and brain health: 810nm has the strongest neurological evidence base. 40Hz pulsed protocols add gamma frequency entrainment effects documented in Alzheimer's and cognitive research.
Deep tissue and bone density: 850nm at high irradiance for the deepest LED penetration, or 1064nm VCSEL laser for the most demanding deep tissue applications.
Fertility and reproductive health: Multiwavelength protocols spanning 660nm, 810nm, 850nm, and 940nm as used in clinical fertility research.
Sleep and circadian rhythm: 660nm applied to the face and upper body for morning sessions. The mechanism is primarily circadian via light exposure rather than deep tissue penetration.
The Dead Zone to Avoid
When evaluating devices, be aware that wavelengths in the 700 to 800nm range have limited documented biochemical activity. Studies have shown that NIR wavelengths from 700 to 750nm have limited biochemical activity and are therefore not often used in research protocols.
This matters for device comparison because a panel listing wavelengths like 730nm or 760nm is not necessarily providing additional therapeutic value over a device that focuses its LED budget on the proven 630 to 660nm and 810 to 850nm therapeutic windows. When comparing devices by wavelength count, confirm that the wavelengths listed sit within or adjacent to the documented therapeutic windows.
StreamShop Devices by Wavelength Coverage
SR72 Panel
StreamShop's SR72 red light therapy panel delivers 660nm and 850nm at 139 mW/cm² at 15cm. The two-wavelength configuration covers the primary therapeutic window for both surface skin applications (660nm) and deep tissue and muscle recovery applications (850nm). Red-only mode makes it appropriate for heat-sensitive applications including facial skin and rosacea. The practical all-rounder for users whose goals span skin health and physical recovery.
Class IIa Medical Grade Desktop Panel
StreamShop's class IIa medical grade desktop panel delivers 160 mW/cm² across nine wavelengths including 630nm, 660nm, 810nm, 830nm, 850nm, 940nm, and 1060nm. The nine-wavelength configuration covers all major documented photobiomodulation absorption peaks within and adjacent to the therapeutic window. Per-wavelength dimming from 1 to 100% allows individual wavelengths to be adjusted or disabled, enabling precise protocol matching to specific goals. This is the most wavelength-flexible device in the StreamShop panel range.
SS300 Pro and SS450 Max
StreamShop's SS300 Pro and SS450 Max class IIa medical grade panels deliver the same nine-wavelength configuration at 175.1 mW/cm² at 15cm through a 30-degree focusing lens that maintains irradiance at greater distances. For applications where both comprehensive wavelength coverage and maximum irradiance delivery matter, these panels represent the most capable LED panel option in the range.
Laser Mat with 1064nm and Laser Bed
StreamShop's red light therapy laser mat with 1064nm combines LED and laser technology across six wavelengths including 630nm, 660nm, 830nm, 850nm, 940nm, and 1064nm at 110 mW/cm² over a 1.8m x 80cm surface. StreamShop's red light therapy laser bed uses 1064nm VCSEL laser for full-body treatment at the deepest-penetrating wavelength available. These are the devices most relevant for users whose goals include deep tissue penetration, bone density, systemic inflammation, and neurological applications where LED penetration depth is a limiting factor.
Frequently Asked Questions
What Is the Best Wavelength for Red Light Therapy?
There is no single best wavelength. 660nm is the most studied and most effective for skin health and collagen. 810 to 850nm is the most effective range for muscle, joint, and neurological applications. 1064nm VCSEL laser provides the deepest tissue penetration for the most demanding targets. Combining multiple wavelengths within the therapeutic window produces superior results to any single wavelength.
Is 660nm or 850nm Better?
Neither is universally better. 660nm is better for surface skin targets including collagen, acne, wound healing, and hair follicles. 850nm is better for muscle recovery, joint pain, and inflammation at depth. Most people benefit from both, which is why the two-wavelength combination of 660nm and 850nm is the most common and most practical starting configuration.
What Is the Best Wavelength for Skin?
630nm and 660nm are the primary wavelengths for skin applications. These wavelengths are absorbed in the epidermis and dermis where collagen, fibroblasts, and sebaceous glands are located. Adding 830nm or 850nm deepens the anti-inflammatory support and addresses dermal layer inflammation, but the primary surface skin effects come from the red wavelengths.
Does 850nm Penetrate Deeper Than 660nm?
Yes, significantly. 660nm penetrates to approximately 4 to 5mm maximum in ideal conditions, reaching the epidermis and dermis. 850nm penetrates significantly deeper, reaching muscle tissue, joints, and subcutaneous structures that red light cannot adequately access. For any target deeper than the dermis, near-infrared wavelengths are needed.
What Is the 700 to 800nm Dead Zone?
Research has shown that wavelengths between approximately 700nm and 800nm have limited biochemical activity in tissue, meaning they produce neither the surface skin effects of red wavelengths nor the deep tissue effects of NIR wavelengths. Devices that include wavelengths in this range are not necessarily providing additional therapeutic value. When evaluating devices, confirm that listed wavelengths fall within the 630 to 660nm and 810 to 850nm therapeutic windows or are the documented extensions at 940nm and 1064nm.
Is More Wavelengths Always Better?
Not necessarily. Wavelengths within the documented therapeutic window add genuine value. Wavelengths outside these windows, particularly in the 700 to 800nm dead zone, may not add meaningful benefit. A device with two well-chosen wavelengths at 660nm and 850nm will outperform a device with six wavelengths where four of them sit in poorly-studied ranges. Focus on whether the wavelengths are within the therapeutic window rather than the total count.
What Does 1064nm VCSEL Do That 850nm Cannot?
1064nm VCSEL laser provides significantly deeper tissue penetration than 850nm LED. The combination of a longer wavelength and the coherent, non-divergent output of laser technology means photons travel further into tissue with less scatter. For targets including bone, deep muscle bellies, and neurological applications requiring transcranial penetration, 1064nm VCSEL reaches tissue depths that 850nm LED cannot adequately access.
